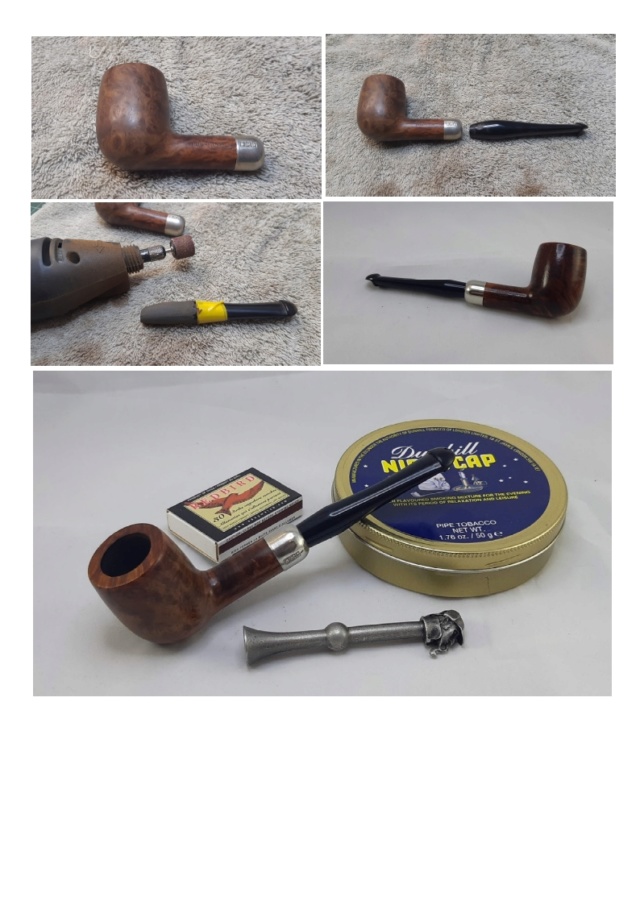

Thought I'd share this here for everyone that likes to restore/repair their own pipes. I had been avoiding this job for a while in order to get my nerve up Very Happy  I had one shot to get this right, so I worked slowly and carefully to carve down an oversized P-lip stem to fit a Peterson Irish Made X105 army mount stummel.

Apart from laying out the length and contours of the finished stem, judging the slope of the cone to fit the mortise was the tricky bit. Too sharp an angle and the stem would wobble; too shallow and the stem wouldn't seat deeply enough in the shank. I roughed in the new shape with a dremel and sanding drum then spent about 3 hours of bench time hand filing and sanding to get the fit right.

Really happy with the finished pipe, though I'm now wishing I didn't have to send it back to its owner!  Very Happy

The full write-up goes live on www.dadspipes.com tomorrow morning for those interested in reading. Thanks for looking.
